Custom Plastic Pallets for Maximum Racking Efficiency
Oct 14, 2026|
View:3
Introduction

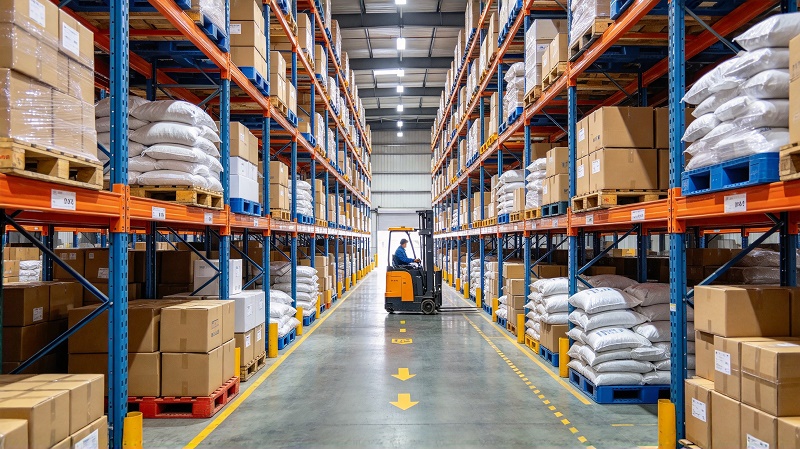

Walk through almost any warehouse and you will see the same problem: racking bays that are 1,100 mm wide holding standard 1,200 mm pallets that barely fit, or 2,700 mm beams designed for three pallets that only carry two because the third will not clear the uprights. Every millimeter of wasted bay width, every unused vertical slot, every pallet that sits lower than it could—these are not minor inefficiencies. They are permanent, daily losses in storage capacity that compound over months and years.
The root cause is almost always the same: using standard plastic pallets in racking systems they were never designed to match. Racking is engineered to precise beam spans, clearance tolerances, and load deflection limits. A pallet that is 10 mm too wide, 15 mm too deep, or 5 mm too thick at the fork entry can force you to drop a storage level, reduce a bay from three pallets to two, or abandon a rack face entirely.
Custom plastic pallets solve this by reversing the equation. Instead of forcing your racking to accommodate a standard footprint, you engineer the pallet around your actual rack dimensions, your load profile, and your handling equipment. The result is recovered storage capacity, safer racking performance, and a lower cost per stored unit. With over 30 years of material science and logistics product design experience, XuanSheng manufactures custom plastic pallets engineered to match specific racking systems and load requirements.
Key Takeaways
Standard pallets waste racking capacity when their footprint does not match beam clear width, forcing fewer pallets per bay or wasted lateral clearance.
Custom dimensions recover 15–30% of lost storage slots by matching pallet width and depth precisely to your rack bay geometry.
Racking load rating is the critical specification—static and dynamic ratings do not apply when a pallet bridges unsupported beams.
Steel reinforcement inside custom plastic pallets raises racking capacity beyond 1,000 kg while keeping deflection within safe limits for automated systems.
Nestable custom designs reduce empty pallet storage by 60–75%, freeing floor space for revenue-generating inventory.
Total cost per pallet position improves when custom pallets eliminate wasted slots and reduce pallet replacement frequency.
I. The Hidden Cost of “Close Enough” Pallet Fit
Why Rack Bays Rarely Match Standard Pallets
Racking systems are built around beam lengths measured in millimeters. A common selective rack bay might have a clear internal beam width of 2,300 mm, 2,500 mm, or 2,700 mm. Standard plastic pallets come in 1,200 × 1,000 mm, 1,100 × 1,100 mm, or 1,200 × 800 mm. None of these combinations produces a perfect fit.
Consider a 2,500 mm clear bay width. If you use 1,200 mm-wide pallets, you can fit two across (2,400 mm), leaving 100 mm of unusable lateral space. That leftover space is not just cosmetic—it prevents you from adding a third pallet, effectively wasting one-third of the bay’s theoretical capacity. Over a rack with 500 bays, that is 500 empty pallet positions.
The same problem exists in the vertical dimension. A pallet that is 150 mm thick may force a lower beam level than one that is 140 mm thick with the same load capacity. Over a six-level rack, that 10 mm difference can cost you an entire storage tier.
The Real-World Impact
| Racking Scenario | Standard Pallet Result | Custom Pallet Solution |
|---|---|---|
| 1,100 mm clear beam width | 1,200 mm pallet does not fit safely | Custom 1,070 mm pallet fits with clearance |
| 2,500 mm bay, 3-pallet capacity | Only 2 × 1,200 mm pallets fit | Custom 800 mm width fits 3 pallets |
| 150 mm pallet thickness limits levels | 5 storage levels maximum | 140 mm custom profile allows 6 levels |
| 800 kg racking load limit | Heavy goods exceed capacity | Steel-reinforced custom pallet reaches 1,200 kg |
II. Measure First: The Rack Dimensions That Matter
Before specifying a custom plastic pallet, you need four measurements from every rack type in your facility.
Critical Rack Measurements
1. Clear Beam Width (Inside Face to Inside Face)
This is the single most important dimension for pallet width. The pallet’s overall width must be less than this measurement, with adequate clearance on each side. For manual placement, allow 5–15 mm per side. For automated systems, the required clearance is often tighter and must be confirmed with your integrator.
2. Beam Span (Front Beam to Rear Beam)
This determines the pallet depth and the unsupported span the pallet must bridge. A pallet that is too short for the span will not reach both beams. A pallet that is too long will overhang dangerously or fail to sit flat.
3. Beam Vertical Spacing
This sets the maximum loaded height between levels. Pallet thickness directly affects how much vertical space remains for your product. A lower-profile custom pallet can add an entire storage level in high-bay racking.
4. Load Deflection Limit
Every racking system has a maximum allowable deflection under load—typically expressed as a fraction of the beam span (for example, 1/180 of span). A custom plastic pallet must be engineered so that its deflection under racking load stays within this limit. Exceeding deflection limits causes beam overstress, product instability, and, in automated systems, robotic fork misalignment.
Measurement Guide
| Measurement | Where to Measure | Why It Matters |
|---|---|---|
| Clear beam width | Inside face of left beam to inside face of right beam | Determines maximum pallet width |
| Beam span | Center of front beam to center of rear beam | Determines minimum pallet depth |
| Vertical clearance | Top of one beam to bottom of the beam above | Determines maximum pallet + load height |
| Deflection tolerance | Consult rack manufacturer or engineering documentation | Determines required pallet rigidity |
III. Engineering the Custom Pallet to Match Your Rack
Once you have your rack dimensions, the custom pallet design process focuses on three structural decisions: width and depth, bottom support geometry, and reinforcement level.
Width and Depth: Precision Fit
Custom plastic palletsare molded to your exact rack bay dimensions, not adapted from a standard mold. If your clear beam width is 1,100 mm, a custom pallet at 1,070 mm width fits with 15 mm clearance per side—safe, stable, and fully supported. If your beam span is 1,000 mm, a custom pallet at 1,020 mm depth provides proper beam engagement without overhang.
The efficiency gain is direct: a bay that held two standard pallets now holds three custom pallets, recovering 50% more storage positions in the same footprint.
Bottom Support Geometry: Where the Load Meets the Beams
The bottom structure of a rackable plastic pallet determines how load transfers to the rack beams. There are three primary configurations:
| Bottom Design | Load Transfer | Best Racking Application |
|---|---|---|
| Three-runner | Continuous support along three longitudinal rails | Drive-in racks, flow racks, high-stability requirements |
| Perimeter base | Support along outer edges | Selective racking, double-deep systems |
| Block / nine-leg | Discrete support points | Step-beam racks with matched support spacing |
A custom design ensures that the pallet’s load-bearing points align precisely with your beam locations. When support points are misaligned, the pallet bends in unsupported zones, increasing deflection and risking failure. Custom tooling places reinforcement exactly where your rack beams need it.
Steel Reinforcement: Raising Racking Capacity
Standard plastic pallets often have modest racking load ratings—typically 500–800 kg—because the plastic alone cannot resist bending across an unsupported span without excessive deflection. Steel tube reinforcement solves this by embedding steel profiles inside the pallet’s runners or perimeter frame.
Custom plastic pallets with steel reinforcement achieve racking loads of 1,000–1,500 kg while keeping deflection within automated system tolerances. The steel is fully encapsulated in HDPE, so the pallet retains its hygiene, moisture resistance, and chemical resistance. XuanSheng’s high-load rackable pallet range includes models with optional 4 or 8 steel pipes, engineered for racking loads exceeding 1,000 kg.
IV. The Space Recovery Calculator: What Custom Fit Is Worth
The financial case for custom plastic pallets is straightforward once you quantify recovered storage positions.
A Simple Example
| Parameter | Standard Pallet Scenario | Custom Pallet Scenario |
|---|---|---|
| Rack bays | 200 | 200 |
| Clear bay width | 2,500 mm | 2,500 mm |
| Pallet width | 1,200 mm | 800 mm |
| Pallets per bay | 2 | 3 |
| Total storage positions | 400 | 600 |
| Storage capacity increase | — | +50% |
| Annual cost per position (est.) | $120 | $80 (fixed costs spread over more positions) |
Recovering 200 storage positions in this example eliminates the need to lease additional warehouse space, build new racking, or turn away inventory. The custom pallet investment is recovered through avoided capital expenditure alone—before accounting for reduced replacement costs and improved handling efficiency.
Empty Pallet Storage
Custom plastic pallets can also be designed with nesting capability. Nestable pallets interlock when stacked empty, compressing height by 60–75% compared with standard stacking. In a closed-loop operation with 2,000 empty pallets, this reduces the floor space needed for empty storage from approximately 300 m² to 75–120 m²—space that can be returned to active inventory or staging.
V. Racking Safety and Deflection: What Custom Design Gets Right
Racking is a structural system. Pallets that do not deflect predictably within design limits compromise the entire rack structure.
The Deflection Problem with Standard Pallets
When a standard plastic pallet is placed on rack beams, the load is supported only at the edges. The pallet acts as a bridge. If the plastic structure is not stiff enough for the span, it bows downward. Excessive deflection causes:
Load instability and product shifting
Beam overstress beyond design limits
Robotic fork misalignment in AS/RS systems
In extreme cases, pallet collapse and rack damage
Industry deflection limits for racking are typically 1/180 of the beam span. For a 1,000 mm beam span, the maximum allowable deflection is approximately 5.6 mm. A custom plastic pallet engineered with steel reinforcement and optimized runner depth can meet this limit at higher load ratings than a standard pallet.
Matching Deflection to Your System
| Rack Type | Typical Deflection Requirement | Custom Pallet Design Response |
|---|---|---|
| Selective racking (manual) | ≤ 10 mm | Standard reinforced runner |
| High-bay AS/RS | ≤ 5 mm | Steel tube reinforcement, deeper runner section |
| Drive-in racking | ≤ 8 mm | Three-runner continuous support |
| Double-deep reach | ≤ 8 mm | Perimeter base with reinforced corners |
XuanSheng engineers custom plastic pallets to meet specific deflection targets, with material selection, wall thickness, and steel reinforcement tailored to your rack span and load profile.
VI. Customization Options for Racking Optimization
Beyond dimensions and reinforcement, several design features directly affect racking performance and space efficiency.
Features That Maximize Rack Space
Lower overall thickness – Reducing pallet height from 150 mm to 140 mm with equivalent strength adds 10 mm of usable vertical space per level. Over six levels, that is 60 mm of recovered height.
Optimized fork entry geometry – Smooth, burr-free fork pockets reduce the risk of forklift impacts damaging the pallet or rack uprights. Custom entry angles can improve handling speed in tight aisles.
Anti-slip surface treatment – Forks and loads stay in position during high-reach racking operations, reducing the risk of product displacement at height.
RFID and barcode placement – Custom-molded pockets for tracking tags ensure reliable scanning without compromising structural integrity.
Color coding – Assigning different colors to different rack zones or load types improves operator efficiency and reduces misplacement errors.
XuanSheng offers comprehensive customization for plastic pallets, including custom dimensions, steel reinforcement, color matching, logo printing, and mold development for proprietary configurations.
VII. Industry Applications
| Industry | Racking Challenge | Custom Pallet Solution |
|---|---|---|
| Food & Beverage | Hygiene + racking load | HDPE custom pallet, FDA-compliant, steel-reinforced |
| Chemical | Chemical resistance + racking | HDPE with sealed steel inserts, custom chemical-resistant surface |
| Automotive | Heavy components, AS/RS | Deep-runner custom pallet with 8 steel tubes, tight deflection |
| Pharmaceutical | Cleanroom + precise dimensions | Custom smooth-surface pallet, ±2 mm tolerance, RFID pockets |
| Cold Chain | -25°C + racking | Cold-resistant HDPE custom pallet, steel reinforced |
| Retail Distribution | High turnover, many SKUs | Nestable custom pallet for empty return, color-coded by zone |
VIII. Frequently Asked Questions
Q1: How do I know if my current plastic pallets are wasting racking space?
A: Measure your clear beam width and compare it to your pallet width. If the pallet occupies more than 90% of the beam width without fitting a second or third pallet, you are losing capacity. Also check pallet thickness against vertical clearance—a lower-profile custom pallet may allow an additional storage level.
Q2: What is the minimum order quantity for custom plastic pallets?
A: Minimum order quantities depend on the degree of customization. Dimension changes within an existing mold family may require smaller volumes than new mold development. XuanSheng works with clients from prototype quantities through full production runs.
Q3: Can custom plastic pallets be designed for both racking and stacking?
A: Yes. Many custom designs incorporate a reversible or dual-purpose structure that supports racking on beams and stable stacking on the floor. The pallet’s bottom geometry and reinforcement are engineered to serve both functions.
Q4: How much does steel reinforcement add to pallet weight?
A: Steel tube reinforcement typically adds 1–3 kg per pallet, depending on the number of tubes and their wall thickness. The weight increase is minimal compared to the racking load capacity gained—often 400–600 kg additional capacity.
Q5: Are custom plastic pallets compatible with automated storage systems?
A: Yes, but they must be specified with tight tolerances. Custom AS/RS pallets require dimensional consistency within ±2–3 mm, controlled deflection under load, smooth bottom surfaces, and precise fork-entry geometry.
Q6: How long does it take to develop a custom plastic pallet?
A: Timeline depends on complexity. Modifications to existing molds may take 4–6 weeks. New mold development for a fully custom design typically takes 8–12 weeks from approval to first production.
Q7: Can I test a custom pallet before committing to full production?
A: Yes. XuanSheng supports prototype and sample testing phases, allowing you to validate dimensional fit, racking performance, and handling compatibility before committing to production tooling.
Q8: What materials are used for custom racking plastic pallets?
A: HDPE is the primary material for racking pallets due to its impact resistance and cold-temperature performance. Steel reinforcement is embedded within the HDPE structure for racking load capacity.
Conclusion: Turn Rack Dimensions Into Storage Capacity
Warehouse space is not fixed. The capacity of your racking system is determined by how precisely your plastic pallets match its geometry. Every millimeter of mismatch—whether in width, depth, thickness, or deflection behavior—costs storage positions that you are already paying rent, labor, and capital to maintain.
Custom plastic pallets eliminate that waste by engineering the pallet around your rack, not adapting your rack around a standard pallet. The result is measurable: more pallets per bay, more levels per rack, safer racking performance, and a lower cost per stored unit.
With over 30 years of expertise in warehousing logistics product design, XuanSheng manufactures custom plastic pallets engineered for specific racking systems and load requirements. From dimension-matched HDPE pallets with steel reinforcement to nestable designs that recover empty storage space, our team provides end-to-end support—from rack measurement and design consultation to prototype testing and bulk production. Our injection molding facilities and material science capabilities allow us to deliver custom pallet solutions with tolerances and load ratings that standard products cannot match.
Ready to stop wasting racking space? Contact the professional plastic pallets supplier, XuanSheng, today. Share your rack beam dimensions, load weights, and handling equipment specifications, and our experts will design a custom plastic pallet solution that turns every millimeter of your racking into productive storage capacity.
